Fiberglass Thermal Double-Sided Tape
- High Thermal Conductivity & Heat Dissipation
- Custom Slitting & Die-Cut Shapes Available
- Strong Double-Sided Adhesion to Metal & PCBs
- Fast Prototype Samples in 2 Working Days
- TDS, SDS & RoHS Compliance Support
Thermally Conductive Double-Sided Adhesive Tape
Our thermally conductive double-sided tape is designed for bonding heat-generating components to aluminum heat sinks, housings, profiles, and other metal surfaces. It provides reliable adhesion while helping transfer heat away from electronic components.
Available in different thicknesses and constructions, our thermal tape can be supplied in master rolls, slit rolls, or custom die-cut parts for OEM applications.
Converting & Customization
Master Rolls: Up to 1240 mm width
Slit Rolls: Custom widths from 5 mm
Custom Die-Cut Parts: Pads, strips, irregular shapes, holes, and pull-tab designs
Custom Roll Length: Available according to application and production requirements
Quick Specifications
Thickness: 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 / 0.7 /1.0 mm
Construction: Fiberglass cloth, tissue, or carrier-free options
Roll Length: 25 m / 50 m or customized
Documentation: TDS, SDS, and RoHS documentation available upon request

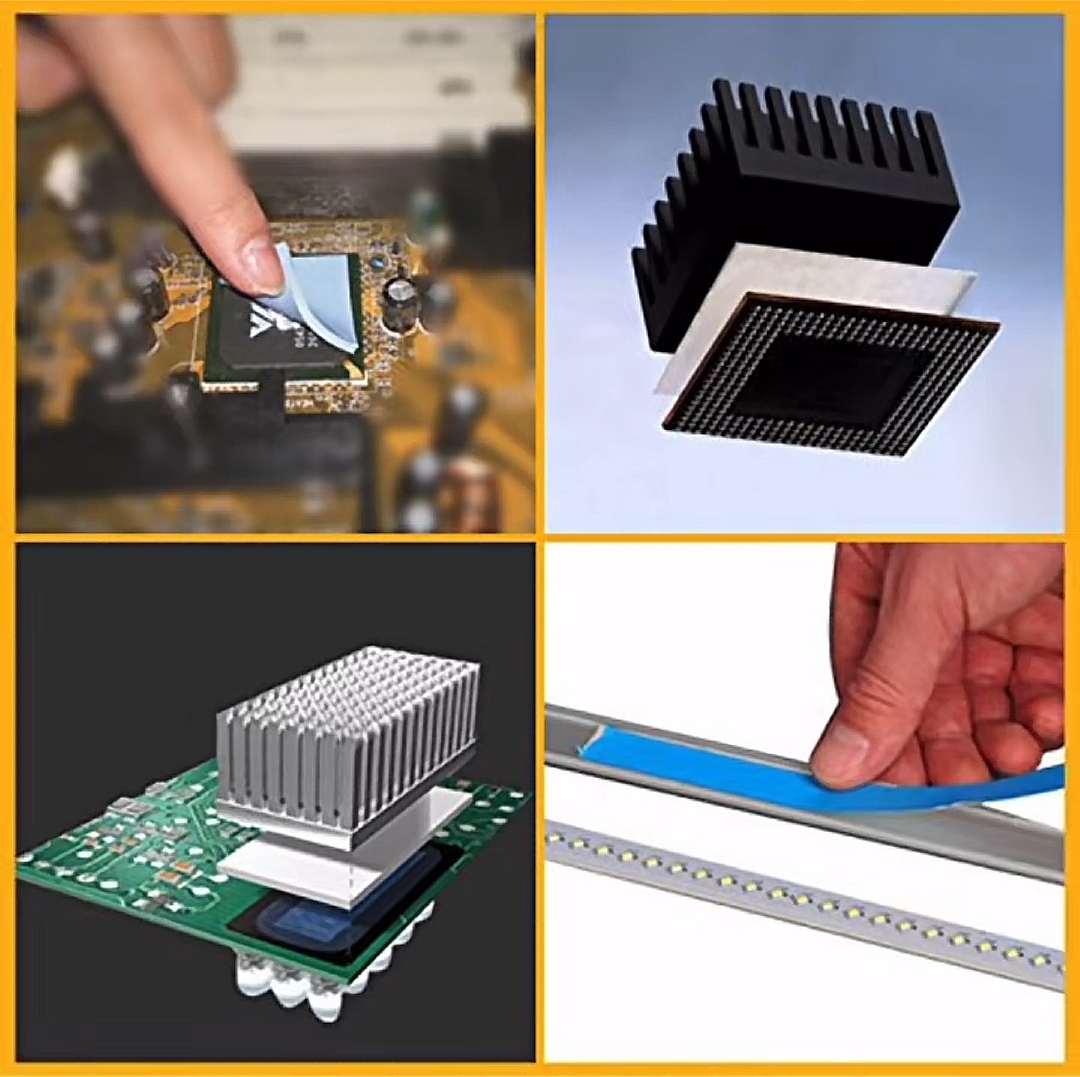

Typical Applications

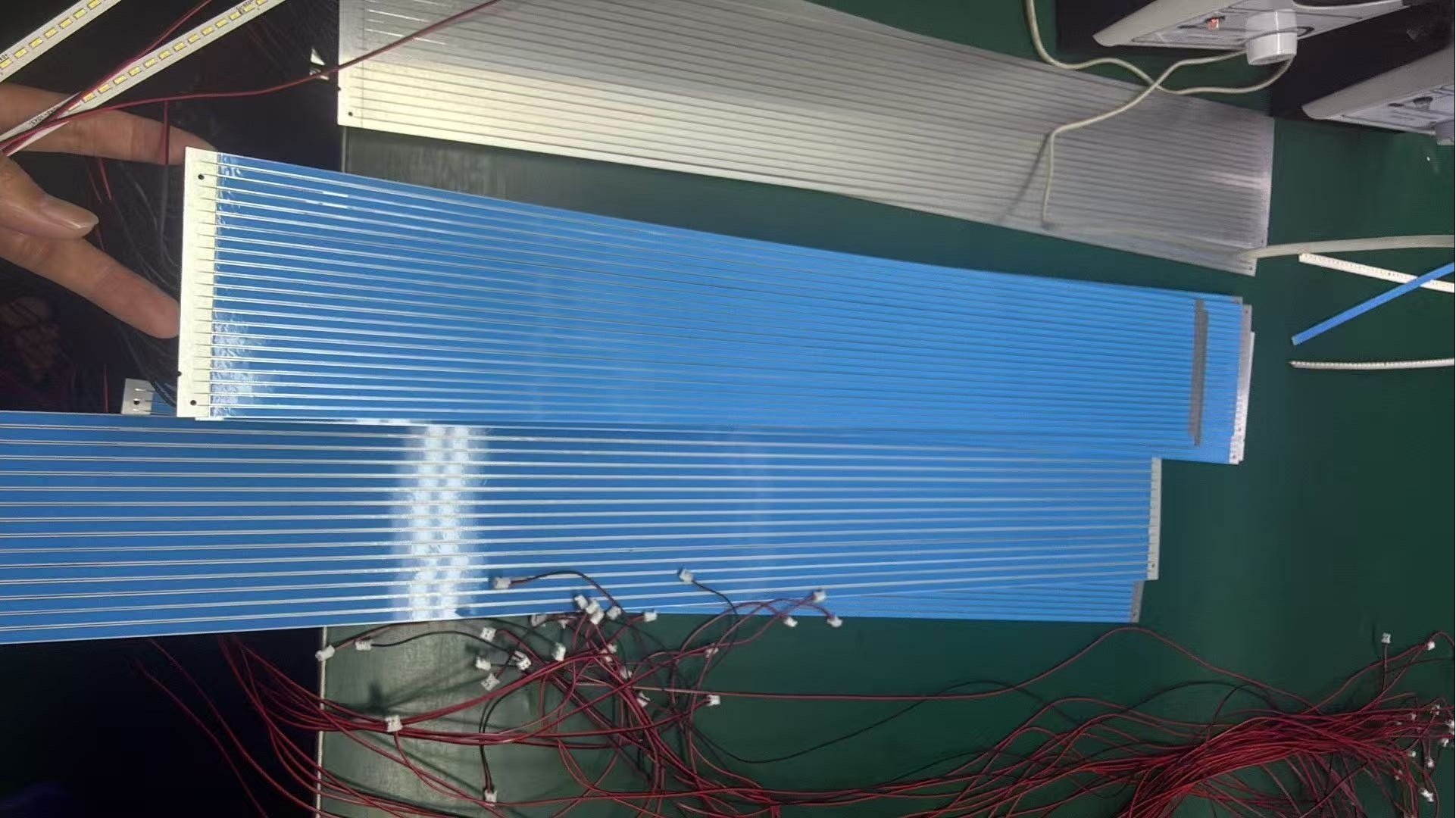

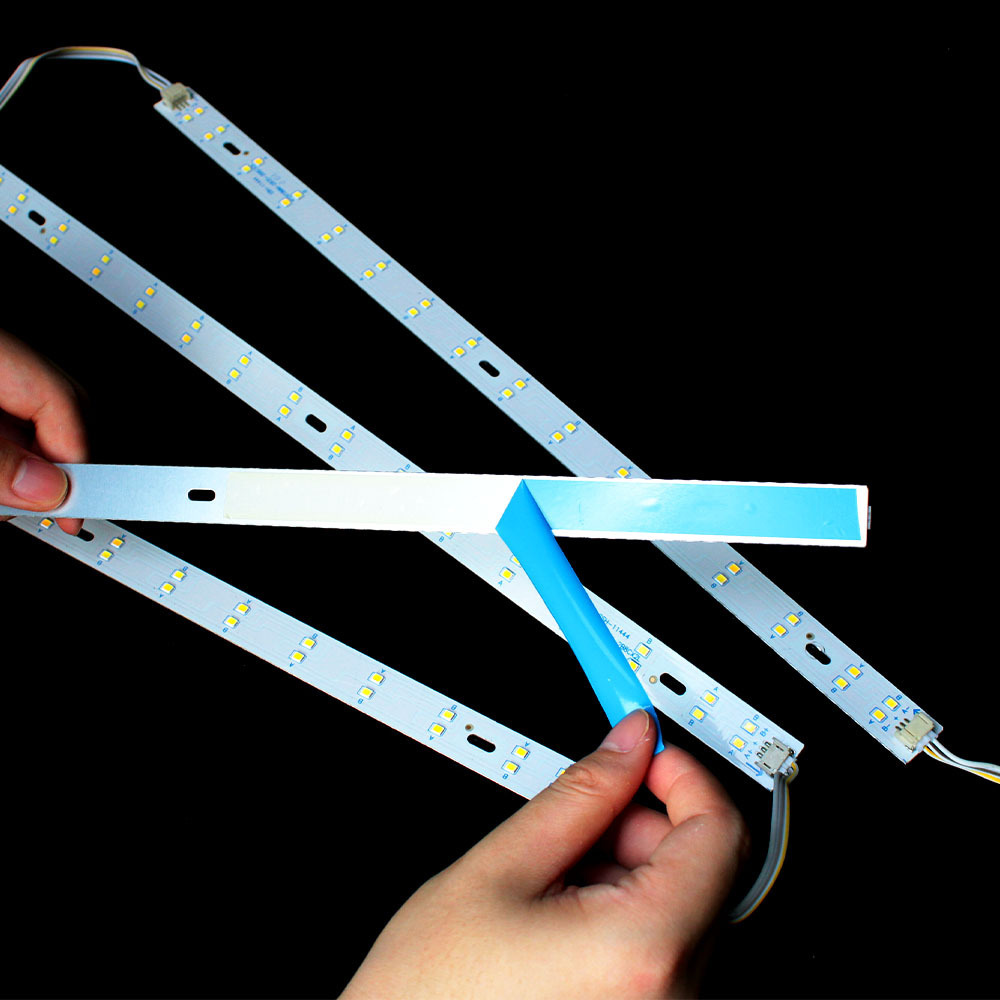

LED Lighting: Mounting LED modules and light strips to aluminum profiles and housings
Electronics & Power Supplies: Bonding PCBs, power components, transformers, and inverters
Thermal Management: Attaching electronic components to aluminum heat sinks and metal surfaces
Automotive Electronics: Thermal bonding applications requiring reliable double-sided adhesion
Need Custom Die-Cut Parts or Prototype Samples?
We can convert thermal conductive adhesive tape into custom shapes based on your drawing, sample, or application requirements.
Prototype samples can be prepared in as fast as 2 working days after drawing and material requirements are confirmed.
For a quick quotation, send us your:
Application + Tape Thickness + Dimensions/Drawing + Estimated Quantity
We'll check the suitable construction and provide a quotation.
| Item / Feature | Specification |
|---|---|
| Product Name | Thermally Conductive Double-Sided Adhesive Tape |
| Substrate / Carrier | Fiberglass Cloth / Tissue / Carrier-Free |
| Available Thickness | 0.1 / 0.15 / 0.2 / 0.25 / 0.3 / 0.4 / 0.5 / 0.7 / 1 mm |
| Slit Width | 3–1240 mm, customizable |
| Standard Roll Length | 25 m / 50 m, or customized |
| Release Liner | Blue PE Film / White Glassine Paper |
| Supply Form | Master Roll / Slit Roll / Sheet / Custom Die-Cut Parts |
| Documentation | TDS / SDS / RoHS / REACH documentation available upon request |
Frequently Asked Questions (FAQ)
Q1: Can you provide custom die-cut shapes or slit widths for this thermal tape?
A: Yes. We offer precision slitting (custom roll widths starting from 5mm) and custom die-cutting based on your CAD/PDF drawings. We can also supply parts in kiss-cut sheets, rolls, or with easy-peel pull tabs for automated/manual assembly.
Q2: What information is required to get a quote or prototype sample?
A: To help us recommend the right material and provide an accurate quote, please share:
Application & materials to be bonded (e.g., LED PCB to aluminum heat sink).
Required tape thickness & dimensions (or drawing).
Operating temperature & electrical insulation requirements (if any).
Estimated order quantity.
Q3: How fast can I get prototype samples for testing?
A: Standard prototype samples can be prepared in as fast as 2 working days after drawing and material confirmation.
Q4: Do you provide product documentation like TDS or RoHS reports?
A: Yes, Technical Data Sheets (TDS), SDS, and RoHS/REACH compliance support are available upon request for specification review.
